ENC-603Lite

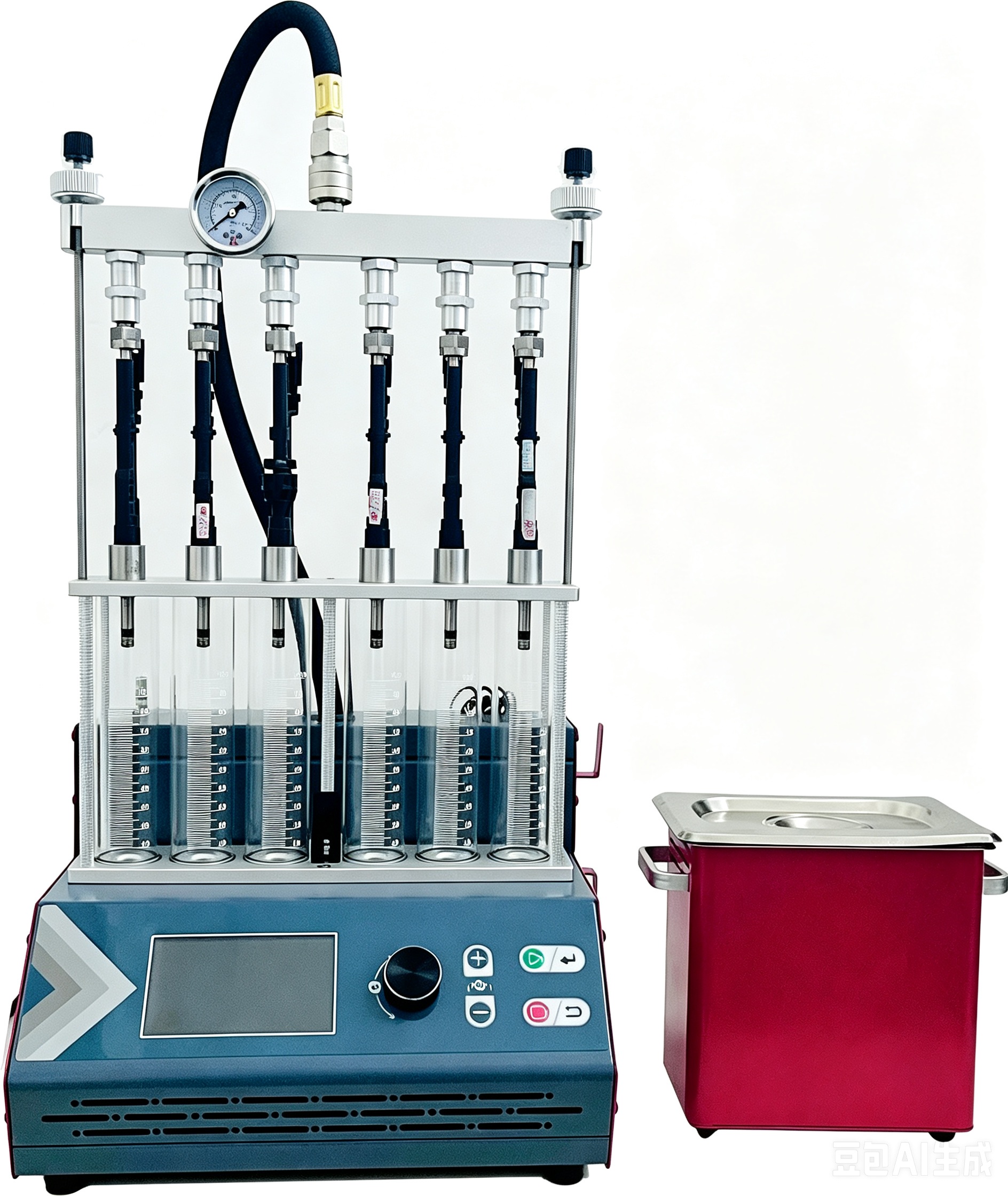

Injector cleaner and tester ENC-603Lite

Feature

Ø An 4.3" LCD control panel which enables all operations to be configured in one display area.

Ø Simple but effective knob-controlled operation logic

Ø Smart pump control method which enhance the durability of fuel pump.

Ø Zero pressure connection and disconnection of the injectors.

Ø Support Injector(Top-feed only):

Ø Low resistance PFI/MFI High resistance PFI/MFI

Ø Manual Drain

Ø GDI Peak & Hold

Ø Resistance Test

Ø Uniformity / Sprayability Test

Ø Back flushing

Ø Leakage Test

Ø Ultrasonic Clean

Ø On-Vehicle Test (Optional accessories required)

Ø Automatic Test

Ø Voltage: AC 90-240V, 50/60Hz

Ø Test Fluid Tank: Max 2L

Ø Output signal: Low resistance PFI / High resistance PFI / GDI-Peak & Hold

Ø RPM: 100-9900 step 100

Ø Pulse Width: 0.5-25ms step 0.01

Ø Pressure: 0~8.5Bar

Ø Ultrasonic Cube Power: Max 60W

Ø Ultrasonic Cube Voltage: DC24V, from main unit

Ø Ultrasonic Cube Tank: 0.8L

Ø Ultrasonic Cube Frequency: 40Khz
